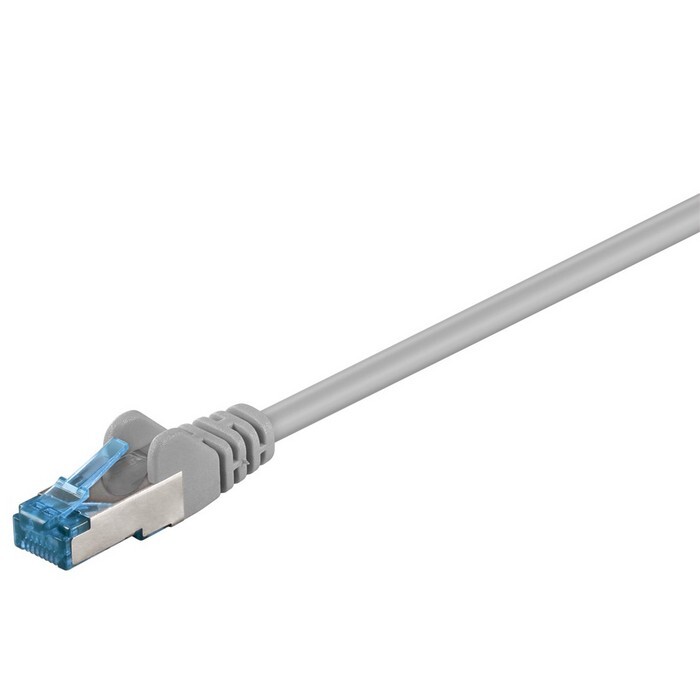

KAB. CAT 6a S/FTP PIMF LSZH 3m GOOBAY
€4.90
double shielded LAN/network cable to connect network components with 2 x RJ45 connectors
Cat 6(A) tested – incl. test report
with gold plated PINs
pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
with length indication on the slimline strain relief, with latch protection
suitable for Power over Ethernet (PoE/PoE+)
pair-sequence acc. to EIA/TIA 568B
In stock
Description
LSZH halogen-free, CU material
AWG – 27/7 (stranded)
Specification – CAT 6A
Cable sheath diameter (approx.) – 6 mm
Shielding class – S/FTP (PiMF)
Number of shieldings – 2 x
Contacting – EIA/TIA-568B
Markings – CE, WEEE
Operating temperature up to – 65 °C
Operating temperature from – -20 °C
max. bandwidth – 500 MHz
Cable length – 3 m
Kink protection – both sides
Cable type – round cable
Material cable sheath – LSZH
Inner conductor material – CU (copper)
suitable for 10 Gigabit Ethernet (10BASE-T/ 100BASE-TX/ 1000BASE-T), (10/100/1000/10000 Mbit)
