can be mounted in Keystone panels up to 24 ports or wall outlets

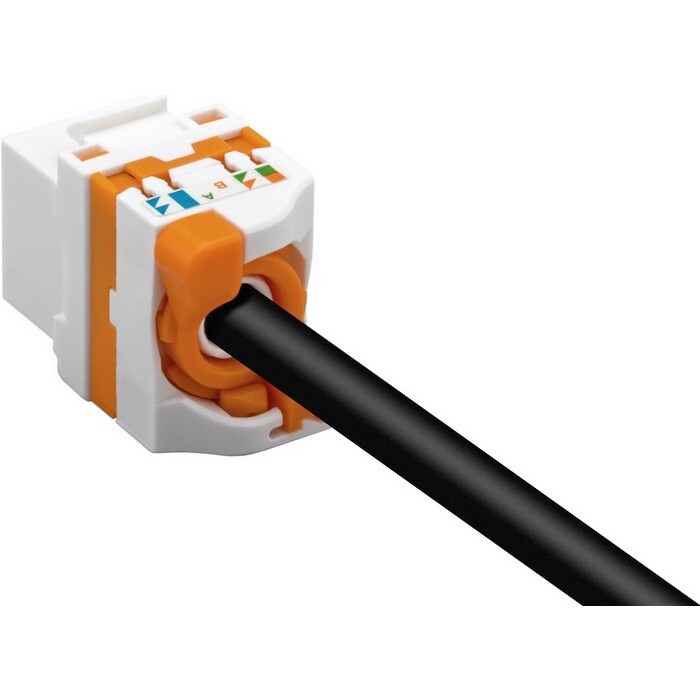

suitable for round cable AWG 22-26, max. cable diameter: 7.5 mm
connectors have TIA 568A/B colour code
suitable for Power over Ethernet (PoE) according to IEEE 802.3 af

Available: In stock

In stock

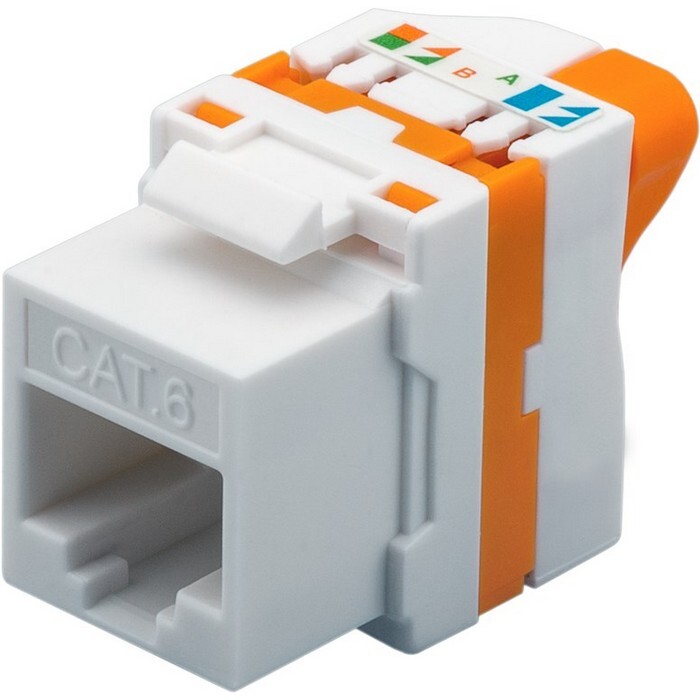

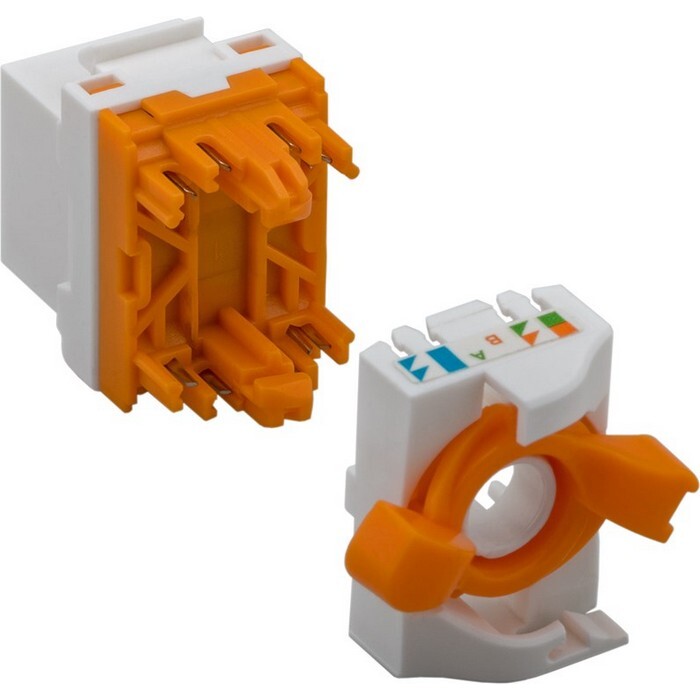

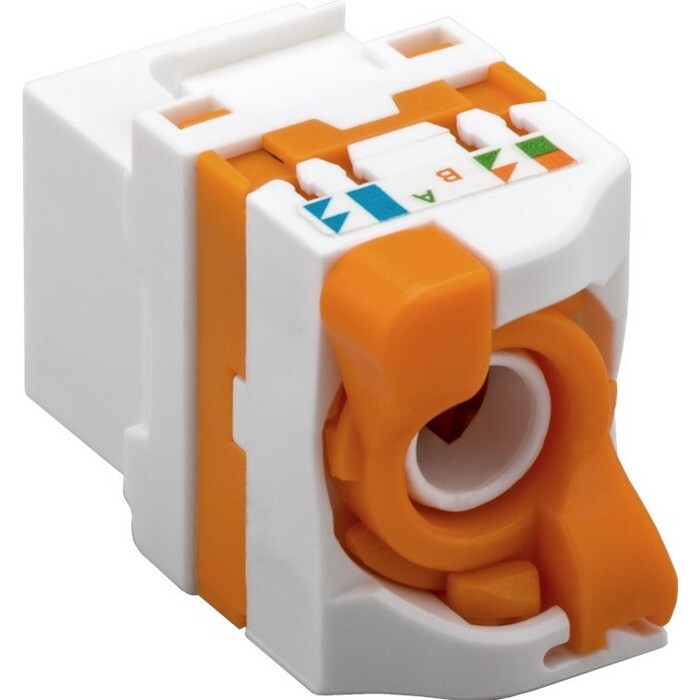

16.6 mm width, for IDC connectors (toolless), with rotating button

AWG – 22 – 26
Specification – CAT 6
Shielding class – UTP
Connection 2, type – for IDC connectors (toolless)
Markings – CE
Color – white, orange
Consumption Unit – 1 pc. in polybag
Width – 44728 mm
max. bandwidth – 250 MHz
Connection, type – RJ45 female (8P8C)
Color version – white-orange

The Keystone System universal – interchangeable – individually configurable With the Keystone system, there are no limits to the installation. A modular connection system for standardized connectors, in 14.9 x 17 mm pitch, for rectangular module receptacles (ports).These are used in a wide variety of areas, such as electrical or optical signal transmission , for example in network installation, laboratories, workshops or in the field of home entertainment. The snap-in system offers a wide variety of connection technologies: via coaxial connectors, (IEC or F-connector), RJ45 (CAT 5/ 6/ 6A) or speaker connectors (Cinch, screw/ clamp connectors) as well as USB, LWL (optical fiber) to HDMI.
