KAB. RG6 COAX 2 SHIELD CCS GOOBAY
€0.28
digital-ready for HDTV using DVB-S/S2, DVB-T/T2, DVB-C/C2
double signal shield for adequate protection over long distances
meter scaling on the cable simplifies building installation

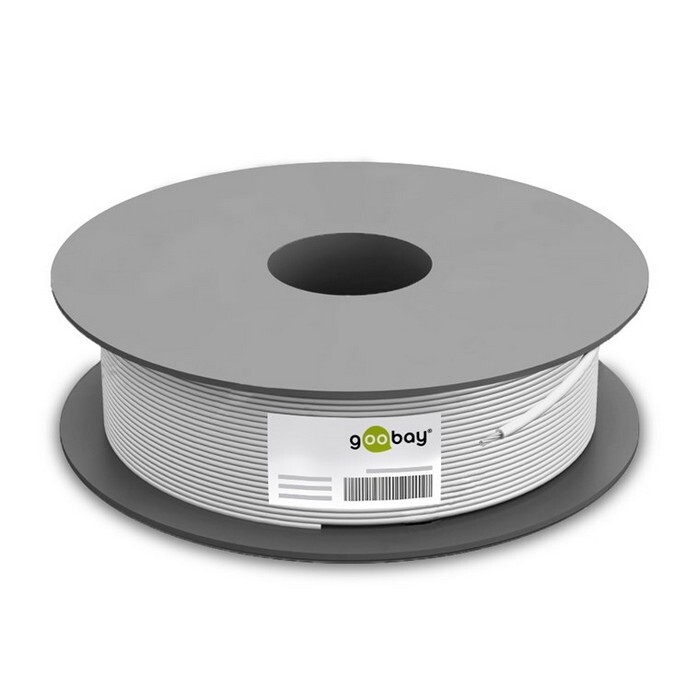

delivered on a simple cardboard roll
The Goobay coaxial-/antenna cables meet the CPR (Construction Products Regulation) and thus comply with the Eca fire protection class.
Out of stock

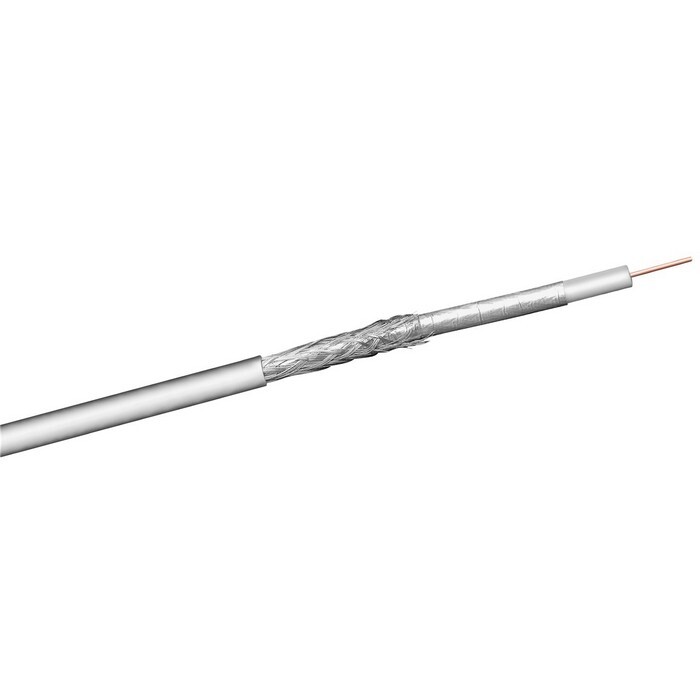

Description
for digital SAT- and CATV-cable systems
Cable sheath diameter (approx.) – 6.5 mm
Dielectric diameter – 1.6
Number of shieldings – 2 x
Markings – ECA_CPR, CE
Operating temperature up to – 75 °C
Operating temperature from – -20 °C
Impedance – 75 Ω
Shielding efficiency – 100 dB
Inner conductor material – CCS
Cable length – 100 m
inner conductor, core diameter – 1.2
Weight – 4256 g
Cable type – coaxial cable
Meter scaling – yes
Type 1, shielding – foil (aluminium)
