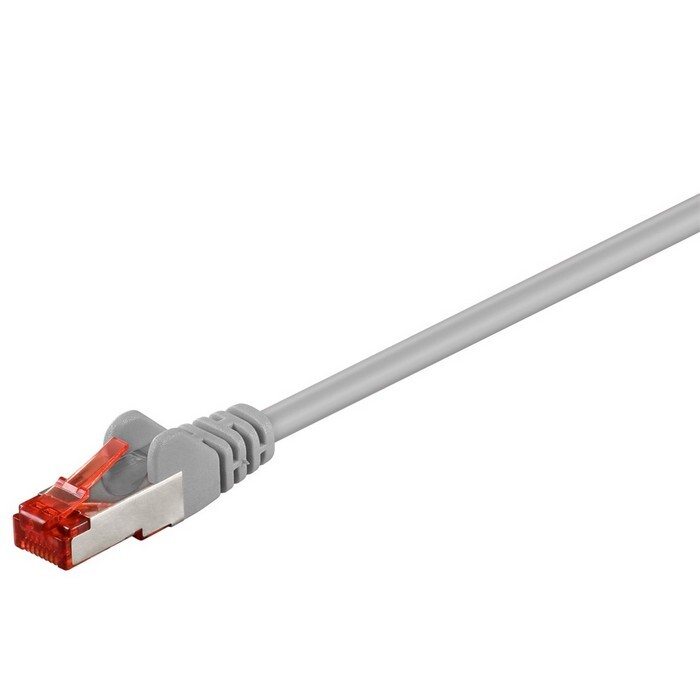

KAB. CAT 6-0750 S/FTP PIMF LC GRAU 7.5m
€3.80
double shielded LAN/network cable to connect network components with 2 x RJ45 connectors
with gold plated PINs
pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
with length indication on the slimline strain relief
with latch protection
pair-sequence acc. to EIA/TIA 568B
suitable for Gigabit (10/100/1000 Mbit)
In stock
Description
CCA
AWG – 27/7 (stranded)
Specification – CAT 6
Cable sheath diameter (approx.) – 5.9 mm
Shielding class – S/FTP (PiMF)
Number of shieldings – 2 x
Contacting – EIA/TIA-568B
Markings – WEEE, CE
Operating temperature up to – 60 °C
Operating temperature from – -20 °C
max. bandwidth – 250 MHz
Cable length – 7.5 m
Kink protection – both sides
Cable type – round cable
Material cable sheath – PVC
Inner conductor material – CCA (copper-clad aluminium)
