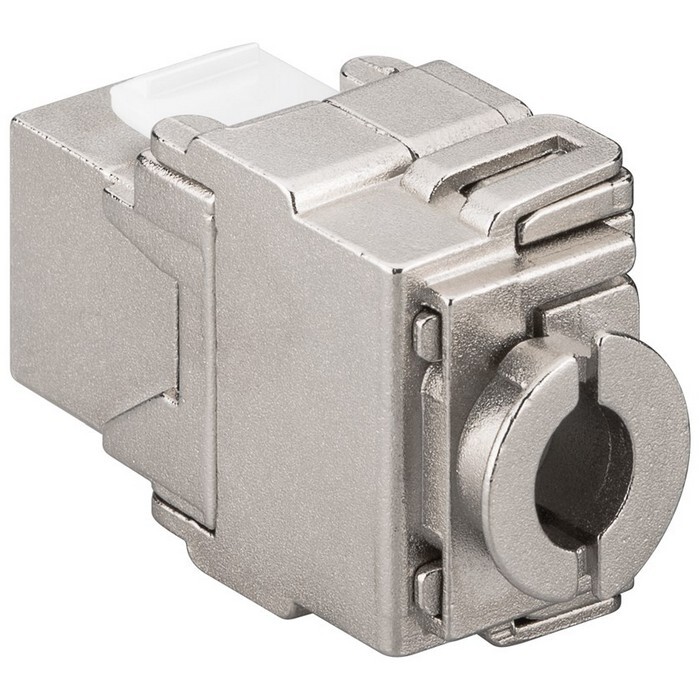

MODULARNA UTIČNICA CAT 6a STP
€3.90
can be mounted in Keystone panels up to 24 ports or wall outltes
connectors have TIA 568A/B colour code
mounting form: 17.3 mm
supports 10 gigabit ethernet application
suitable for Power over Ethernet (PoE) according to IEEE 802.3 af

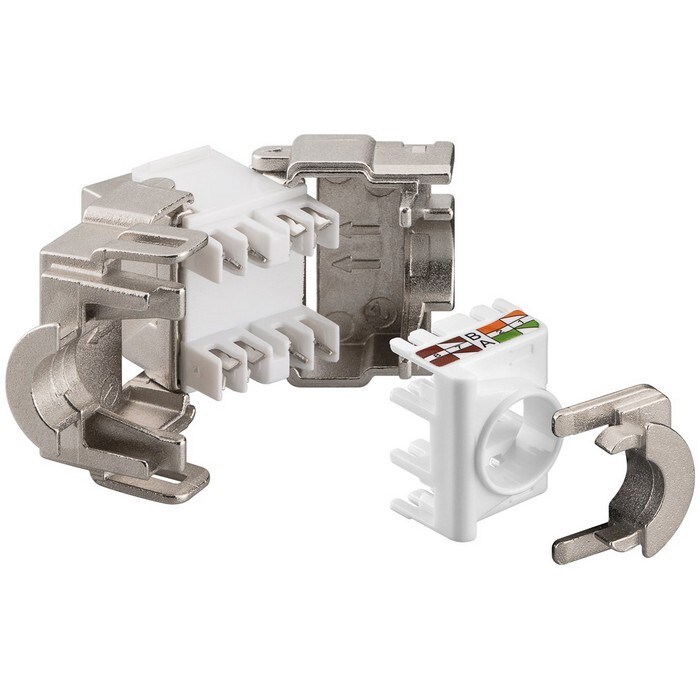

strain-relief by cable tie
zinc-alloy housing, not suitable for Keystone mounting box 79355, 79366, 79376, 79379, 79426
In stock
Description
17.3 mm width, butterfly type, for IDC connectors (toolless)
Specification – CAT 6A
Shielding class – STP
Connection 2, type – for IDC connectors (toolless)
Markings – CE
Consumption Unit – 1 pc. in polybag
Height – 26.04 mm
Length – 41.7 mm
Width – 44637 mm
max. bandwidth – 500 MHz
construction form – butterfly type
Connection, type – RJ45 female (8P8C)
Operation manual – en, de
–
–
–
The Keystone System universal – interchangeable – individually configurable With the Keystone system, there are no limits to the installation. A modular connection system for standardized connectors, in 14.9 x 17 mm pitch, for rectangular module receptacles (ports).These are used in a wide variety of areas, such as electrical or optical signal transmission , for example in network installation, laboratories, workshops or in the field of home entertainment. The snap-in system offers a wide variety of connection technologies: via coaxial connectors, (IEC or F-connector), RJ45 (CAT 5/ 6/ 6A) or speaker connectors (Cinch, screw/ clamp connectors) as well as USB, LWL (optical fiber) to HDMI.
